Custom charts overview

Create custom charts in W&B projects with Vega visualizations

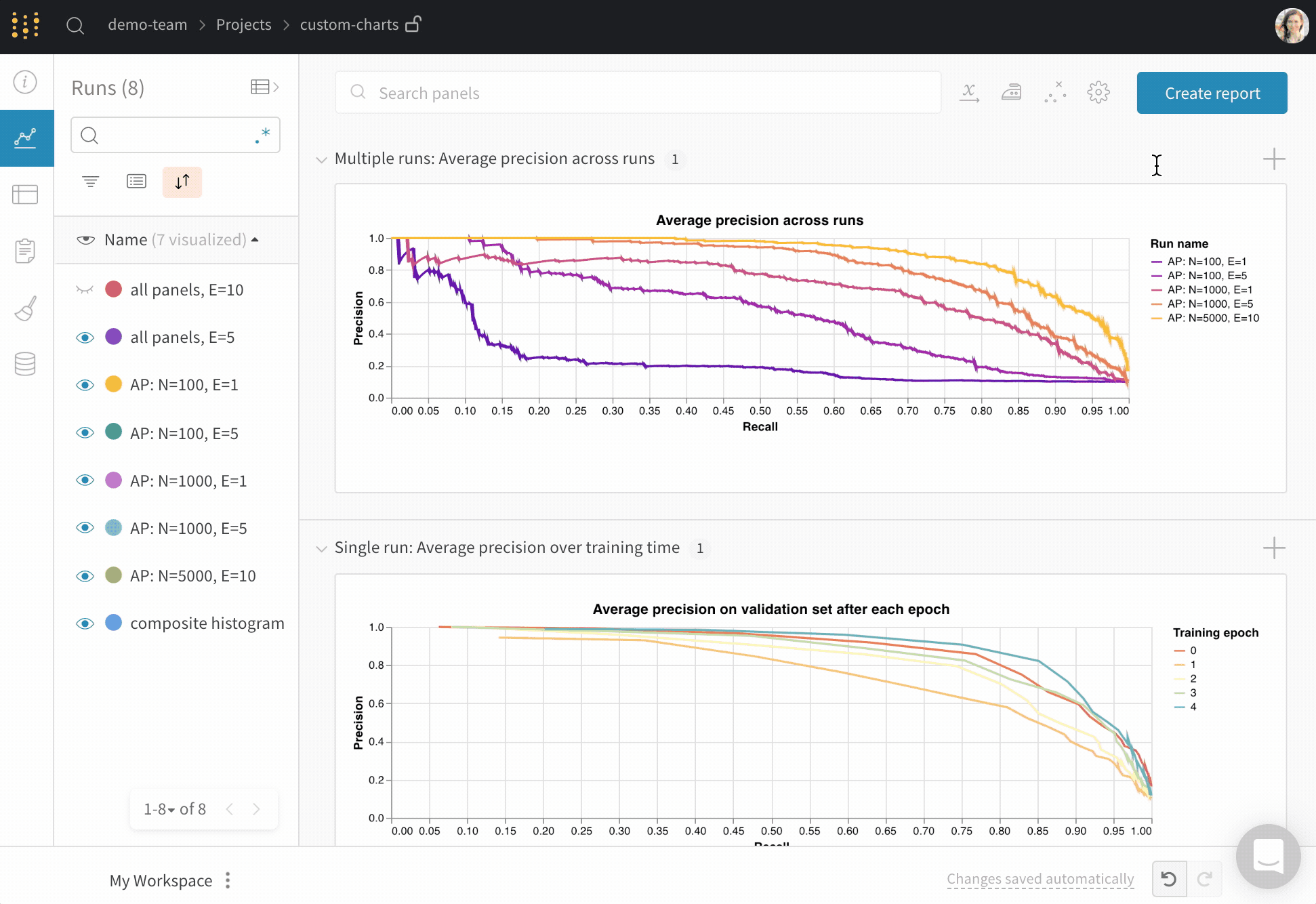

Create custom charts in your W&B project. Log arbitrary tables of data and visualize them exactly how you want. Control details of fonts, colors, and tooltips with the power of Vega.

• Code: Try an example Colab Colab notebook.
• Video: Watch a walkthrough video.
• Example: Quick Keras and Sklearn demo notebook

How it works

1. Log data: From your script, log config and summary data.
2. Customize the chart: Pull in logged data with a GraphQL query. Visualize the results of your query with Vega, a powerful visualization grammar.
3. Log the chart: Call your own preset from your script with wandb.plot_table().

If you do not see the expected data, the column you are looking for might not be logged in the selected runs. Save your chart, go back out to the runs table, and verify selected runs using the eye icon.

Log charts from a script

Builtin presets

W&B has a number of builtin chart presets that you can log directly from your script. These include line plots, scatter plots, bar charts, histograms, PR curves, and ROC curves.

Line plot

wandb.plot.line()

Log a custom line plot—a list of connected and ordered points (x,y) on arbitrary axes x and y.

with wandb.init() as run:
  data = [[x, y] for (x, y) in zip(x_values, y_values)]
  table = wandb.Table(data=data, columns=["x", "y"])
  run.log(
      {
          "my_custom_plot_id": wandb.plot.line(
              table, "x", "y", title="Custom Y vs X Line Plot"
          )
      }
  )

A line plot logs curves on any two dimensions. If you plot two lists of values against each other, the number of values in the lists must match exactly (for example, each point must have an x and a y).

See an example report or try an example Google Colab notebook.

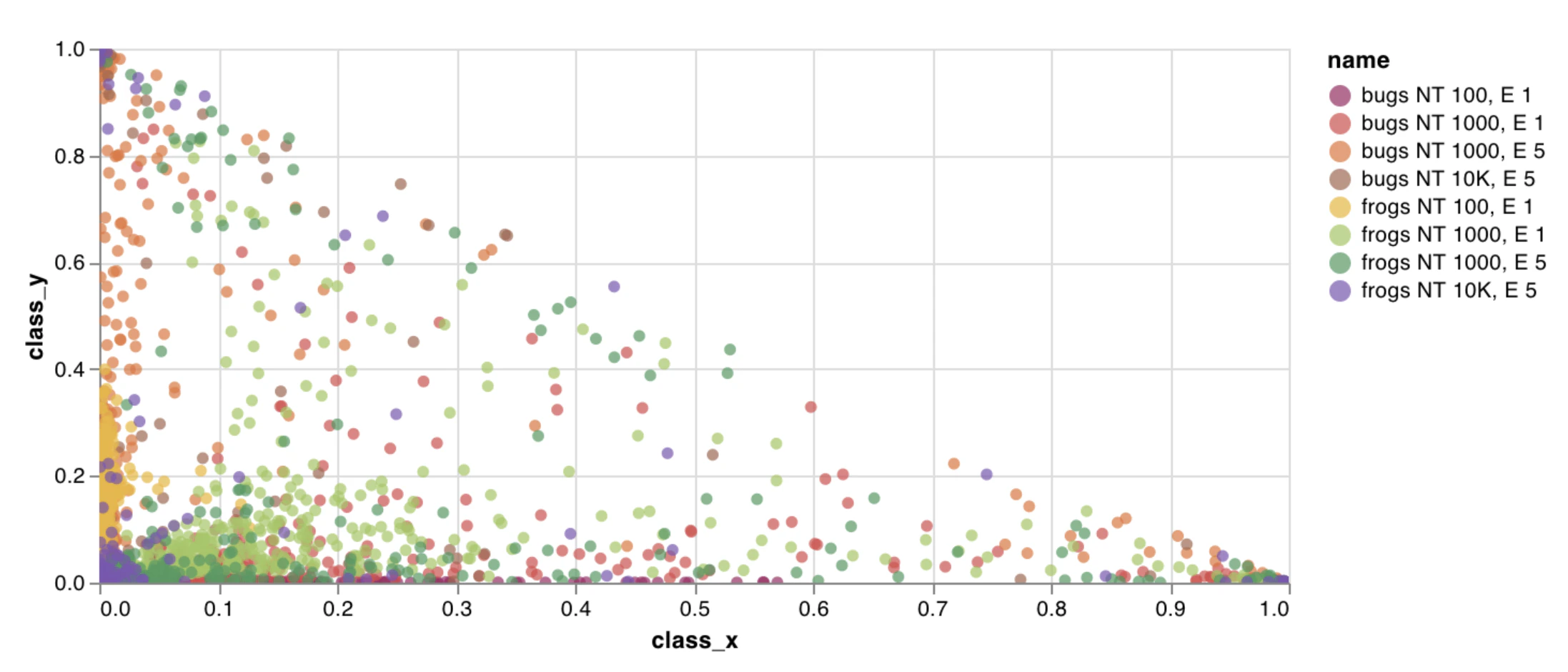

Scatter plot

wandb.plot.scatter()

Log a custom scatter plot—a list of points (x, y) on a pair of arbitrary axes x and y.

with wandb.init() as run:
  data = [[x, y] for (x, y) in zip(class_x_prediction_scores, class_y_prediction_scores)]
  table = wandb.Table(data=data, columns=["class_x", "class_y"])
  run.log({"my_custom_id": wandb.plot.scatter(table, "class_x", "class_y")})

You can use this to log scatter points on any two dimensions. Note that if you’re plotting two lists of values against each other, the number of values in the lists must match exactly (for example, each point must have an x and a y).

See an example report or try an example Google Colab notebook.

Bar chart

wandb.plot.bar()

Log a custom bar chart—a list of labeled values as bars—natively in a few lines:

with wandb.init() as run:
  data = [[label, val] for (label, val) in zip(labels, values)]
  table = wandb.Table(data=data, columns=["label", "value"])
  run.log(
      {
          "my_bar_chart_id": wandb.plot.bar(
              table, "label", "value", title="Custom Bar Chart"
          )
      }
  )

You can use this to log arbitrary bar charts. Note that the number of labels and values in the lists must match exactly (for example, each data point must have both).

See an example report or try an example Google Colab notebook.

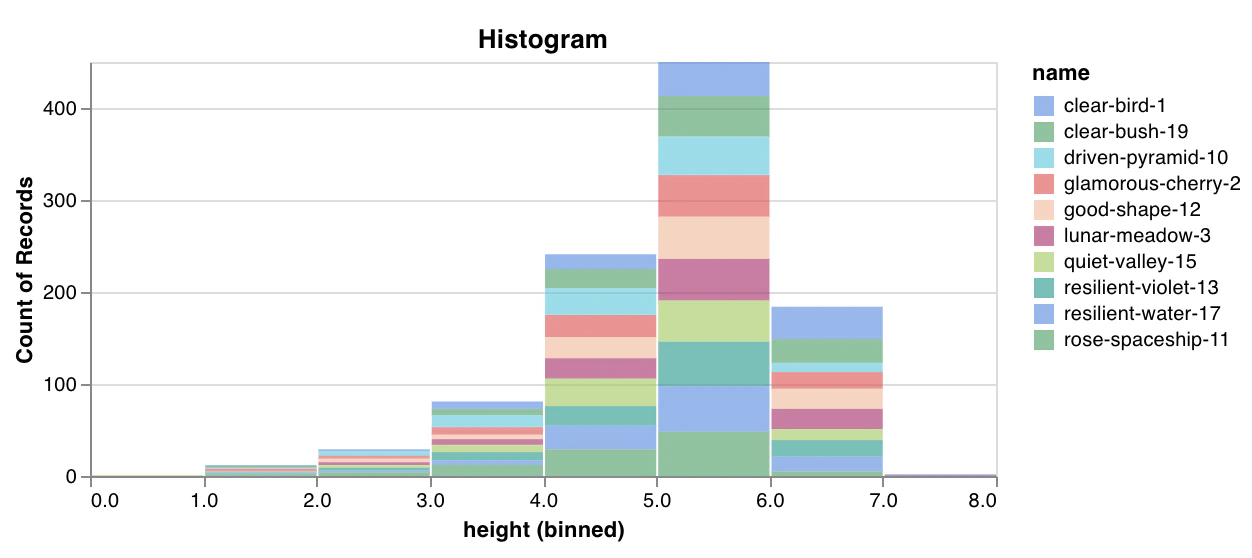

Histogram

wandb.plot.histogram()

Log a custom histogram—sort list of values into bins by count/frequency of occurrence—natively in a few lines. Let’s say I have a list of prediction confidence scores (scores) and want to visualize their distribution:

with wandb.init() as run:
  data = [[s] for s in scores]
  table = wandb.Table(data=data, columns=["scores"])
  run.log({"my_histogram": wandb.plot.histogram(table, "scores", title=None)})

You can use this to log arbitrary histograms. Note that data is a list of lists, intended to support a 2D array of rows and columns.

See an example report or try an example Google Colab notebook.

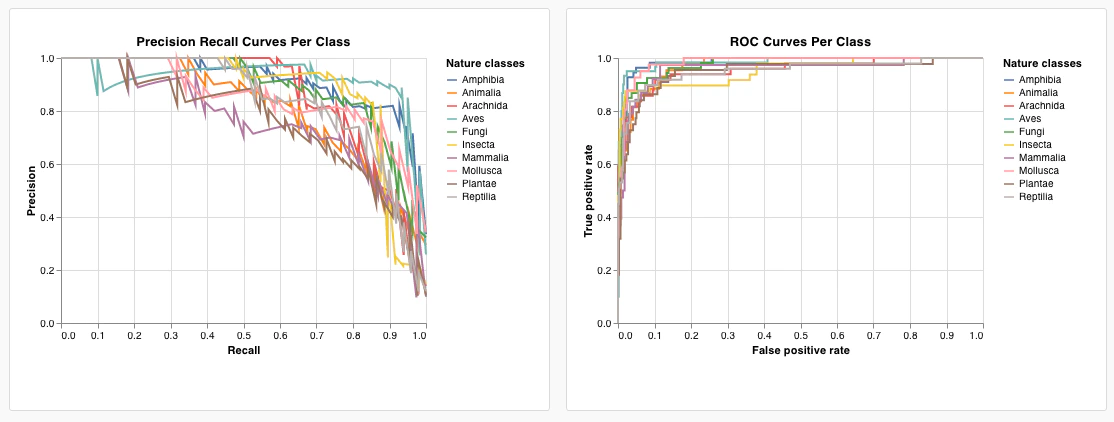

PR curve

wandb.plot.pr_curve()

Create a Precision-Recall curve in one line:

with wandb.init() as run:
  plot = wandb.plot.pr_curve(ground_truth, predictions, labels=None, classes_to_plot=None)

  run.log({"pr": plot})

You can log this whenever your code has access to:

• a model’s predicted scores (predictions) on a set of examples
• the corresponding ground truth labels (ground_truth) for those examples
• (optionally) a list of the labels/class names (labels=["cat", "dog", "bird"...] if label index 0 means cat, 1 = dog, 2 = bird, etc.)
• (optionally) a subset (still in list format) of the labels to visualize in the plot

See an example report or try an example Google Colab notebook.

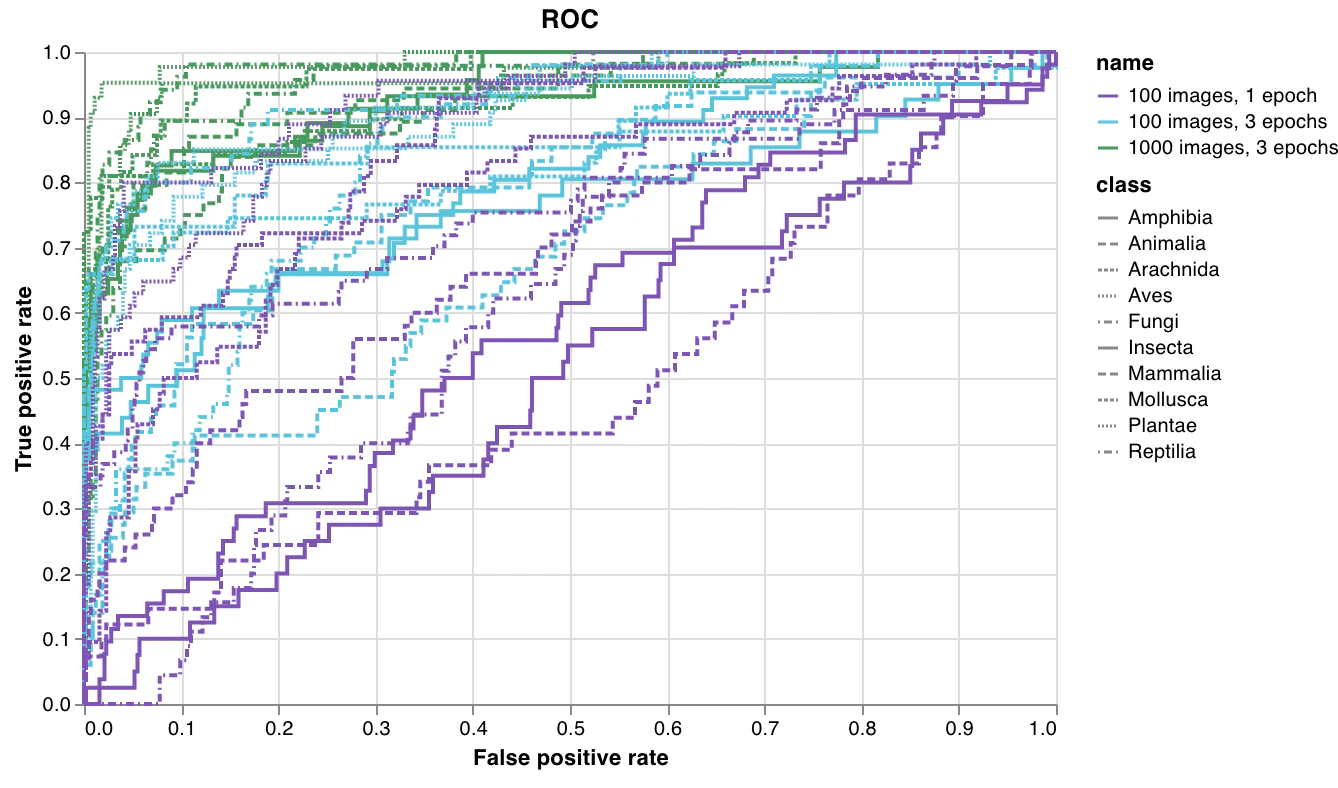

ROC curve

wandb.plot.roc_curve()

Create an ROC curve in one line:

with wandb.init() as run:
  # ground_truth is a list of true labels, predictions is a list of predicted scores
  ground_truth = [0, 1, 0, 1, 0, 1]
  predictions = [0.1, 0.4, 0.35, 0.8, 0.7, 0.9]

  # Create the ROC curve plot
  # labels is an optional list of class names, classes_to_plot is an optional subset of those labels to visualize
  plot = wandb.plot.roc_curve(
      ground_truth, predictions, labels=None, classes_to_plot=None
  )

  run.log({"roc": plot})

You can log this whenever your code has access to:

• a model’s predicted scores (predictions) on a set of examples
• the corresponding ground truth labels (ground_truth) for those examples
• (optionally) a list of the labels/ class names (labels=["cat", "dog", "bird"...] if label index 0 means cat, 1 = dog, 2 = bird, etc.)
• (optionally) a subset (still in list format) of these labels to visualize on the plot

See an example report or try an example Google Colab notebook.

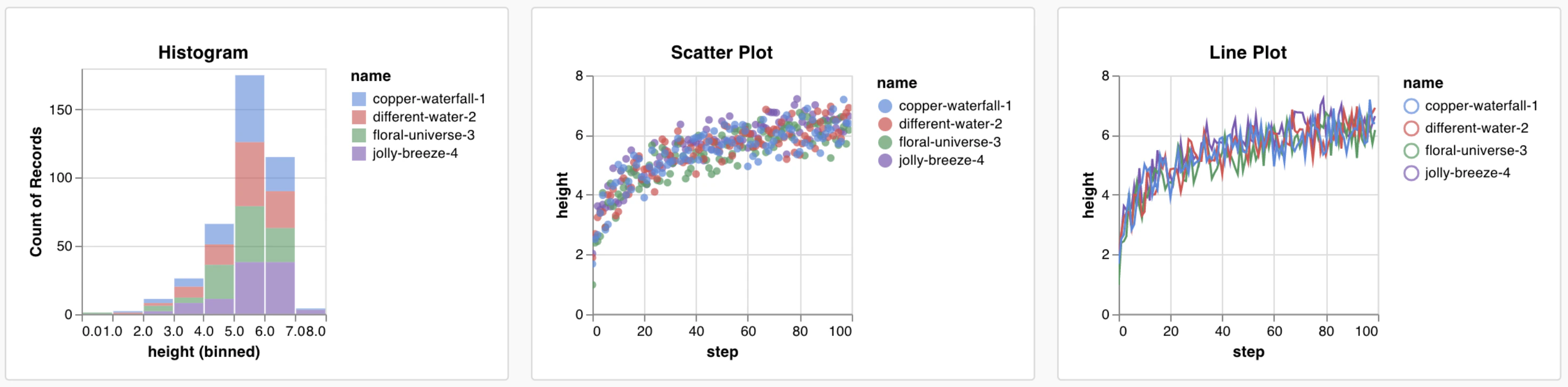

Custom presets

Tweak a builtin preset, or create a new preset, then save the chart. Use the chart ID to log data to that custom preset directly from your script. Try an example Google Colab notebook.

# Create a table with the columns to plot
table = wandb.Table(data=data, columns=["step", "height"])

# Map from the table's columns to the chart's fields
fields = {"x": "step", "value": "height"}

# Use the table to populate the new custom chart preset
# To use your own saved chart preset, change the vega_spec_name
my_custom_chart = wandb.plot_table(
    vega_spec_name="carey/new_chart",
    data_table=table,
    fields=fields,
)

Log data

You can log the following data types from your script and use them in a custom chart:

• Config: Initial settings of your experiment (your independent variables). This includes any named fields you’ve logged as keys to wandb.Run.config at the start of your training. For example: wandb.Run.config.learning_rate = 0.0001
• Summary: Single values logged during training (your results or dependent variables). For example, wandb.Run.log({"val_acc" : 0.8}). If you write to this key multiple times during training via wandb.Run.log(), the summary is set to the final value of that key.
• History: The full time series of the logged scalar is available to the query via the history field
• summaryTable: If you need to log a list of multiple values, use a wandb.Table() to save that data, then query it in your custom panel.
• historyTable: If you need to see the history data, then query historyTable in your custom chart panel. Each time you call wandb.Table() or log a custom chart, you’re creating a new table in history for that step.

How to log a custom table

Use wandb.Table() to log your data as a 2D array. Typically each row of this table represents one data point, and each column denotes the relevant fields/dimensions for each data point which you’d like to plot. As you configure a custom panel, the whole table will be accessible via the named key passed to wandb.Run.log()(custom_data_table below), and the individual fields will be accessible via the column names (x, y, and z). You can log tables at multiple time steps throughout your experiment. The maximum size of each table is 10,000 rows. Try an example a Google Colab.

with wandb.init() as run:
  # Logging a custom table of data
  my_custom_data = [[x1, y1, z1], [x2, y2, z2]]
  run.log(
      {"custom_data_table": wandb.Table(data=my_custom_data, columns=["x", "y", "z"])}
  )

Customize the chart

Add a new custom chart to get started, then edit the query to select data from your visible runs. The query uses GraphQL to fetch data from the config, summary, and history fields in your runs.

Build the GraphQL query

The custom chart editor runs a GraphQL query over the runs you selected in the project workspace or report. In the query editor, add the fields you need. You can pick from config, summary, history, summaryTable, and historyTable so you do not need to write the query from scratch for most cases.

Each source in the query maps to different logged data:

• Config pulls run configuration values (hyperparameters and other settings).
• Summary pulls summary values. By default, the summary for a key logged with wandb.Run.log() holds the last value written for that key. To use a different aggregate, call wandb.Run.define_metric(..., summary=...) with "min", "max", "mean", "best", or "none". To set a value directly, assign wandb.Run.summary["key"] = value.
• History pulls scalar time series from run history (for example loss or accuracy at each step). Use history when you need the full curve, not only the final number.
• summaryTable loads a wandb.Table from the run summary. Use it when the table you care about is stored as a single snapshot on the run (for example one confusion matrix you log once at the end).
• historyTable loads a wandb.Table from run history. Each time you log a table with wandb.Run.log(), you add another step to run history that includes that table. Use historyTable when the table changes over time or when you want to enable the step selector in the custom chart editor (see How do you show a step slider in a custom chart?).

For summaryTable and historyTable, set tableKey to the dictionary key you used inside wandb.Run.log(), not to a column name inside the wandb.Table.

The following examples cover common cases:

• Plot columns from a table you log at each step (for example a PR curve): add historyTable, set tableKey to your logged key (for example pr_curve), then map table columns in Chart fields. See the custom charts tutorial.
• Plot columns from a table that lives in summary (for example class scores for a composite histogram): add summaryTable, set tableKey to that key (the tutorial uses class_scores). See Bonus: composite histograms.
• Plot a scalar metric over training steps: add the metric from history. If you only add it from summary, the chart shows a single value per run.

Chart field names

After the query runs, Chart fields lists columns you can bind into the Vega spec. Names often begin with runSets_ and reflect the selected query fields. Choose them from the dropdowns next to each ${field:...} placeholder instead of typing them manually.

If a column never appears, confirm the key exists on the selected runs, open the run page to verify how the data was logged, and check whether summaryTable or historyTable matches that logging pattern.

Custom charts use this GraphQL-based panel query. Query panels use a different expression language and are documented separately.

Custom visualizations

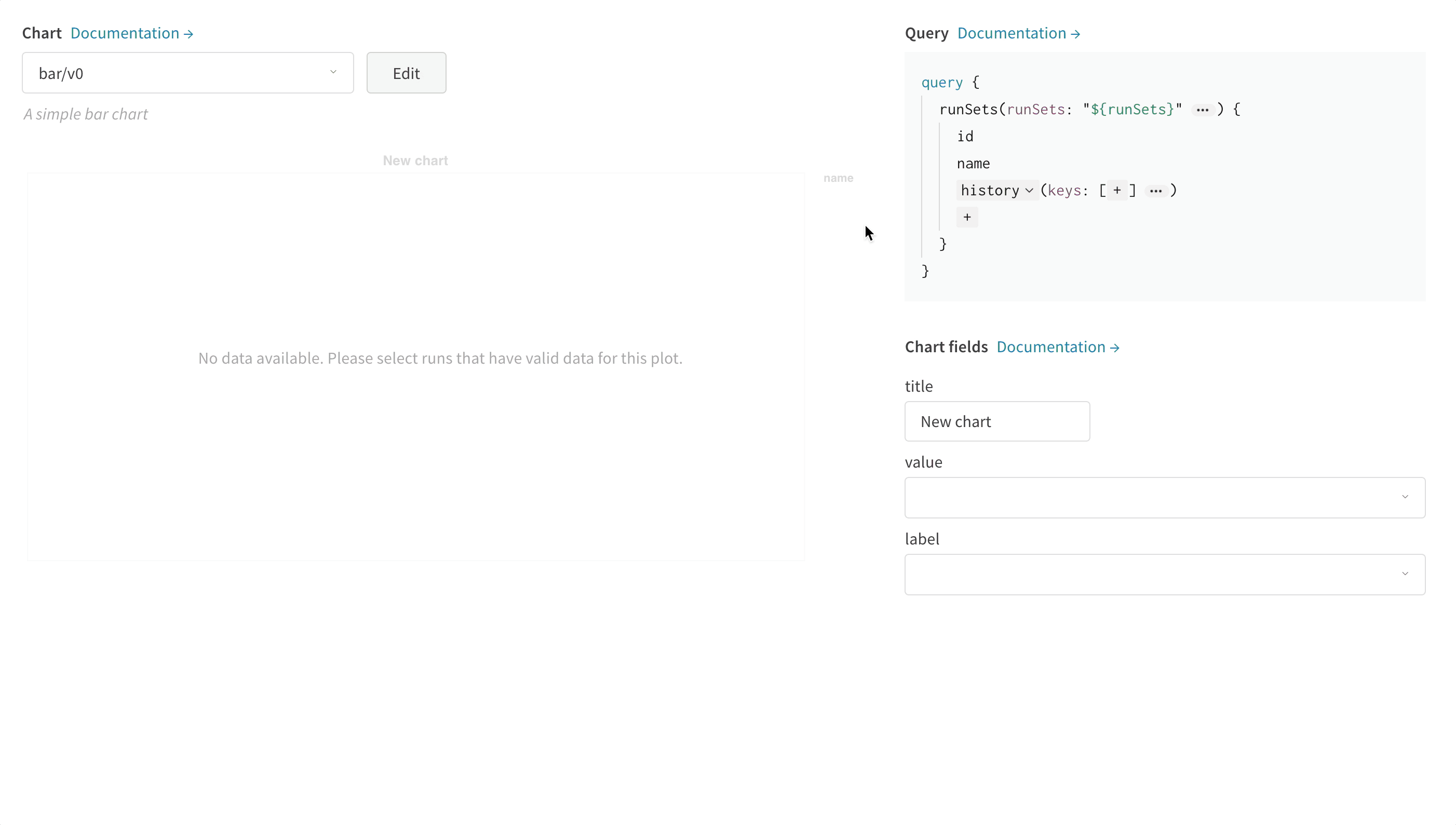

Select a Chart in the upper right corner to start with a default preset. Next, select Chart fields to map the data you’re pulling in from the query to the corresponding fields in your chart.

The following image shows an example on how to select a metric then mapping that into the bar chart fields below.

How to edit Vega

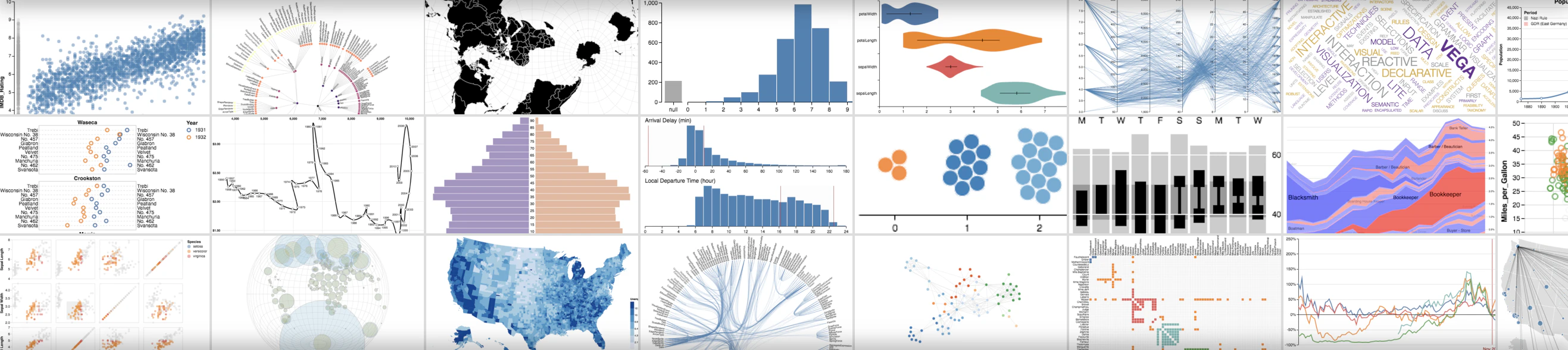

Click Edit at the top of the panel to go into Vega edit mode. Here you can define a Vega specification that creates an interactive chart in the UI. You can change any aspect of the chart. For example, you can change the title, pick a different color scheme, show curves as a series of points instead of as connected lines. You can also make changes to the data itself, such as using a Vega transform to bin an array of values into a histogram. The panel preview will update interactively, so you can see the effect of your changes as you edit the Vega spec or query. Refer to the Vega documentation and tutorials .

Field references

To pull data into your chart from W&B, add template strings of the form "${field:<field-name>}" anywhere in your Vega spec. This will create a dropdown in the Chart Fields area on the right side, which users can use to select a query result column to map into Vega.

To set a default value for a field, use this syntax: "${field:<field-name>:<placeholder text>}"

Saving chart presets

Apply any changes to a specific visualization panel with the button at the bottom of the modal. Alternatively, you can save the Vega spec to use elsewhere in your project. To save the reusable chart definition, click Save as at the top of the Vega editor and give your preset a name.

Articles and guides

1. The W&B Machine Learning Visualization IDE
2. Visualizing NLP Attention Based Models
3. Visualizing The Effect of Attention on Gradient Flow
4. Logging arbitrary curves

Common use cases

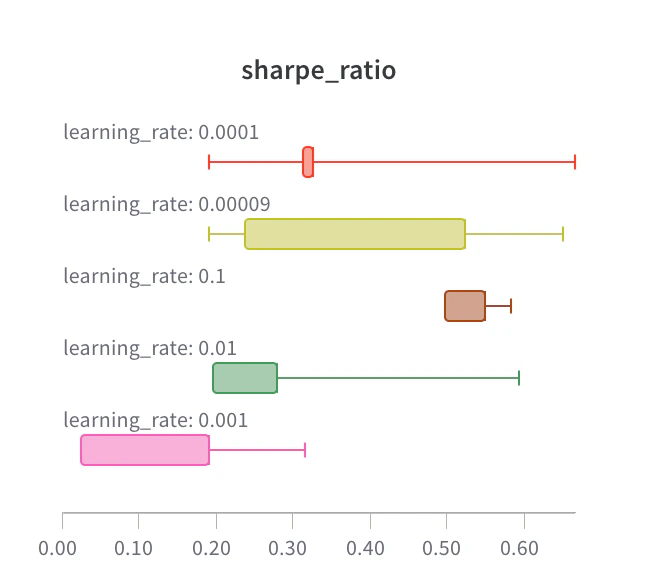

• Customize bar plots with error bars
• Show model validation metrics which require custom x-y coordinates (like precision-recall curves)
• Overlay data distributions from two different models/experiments as histograms

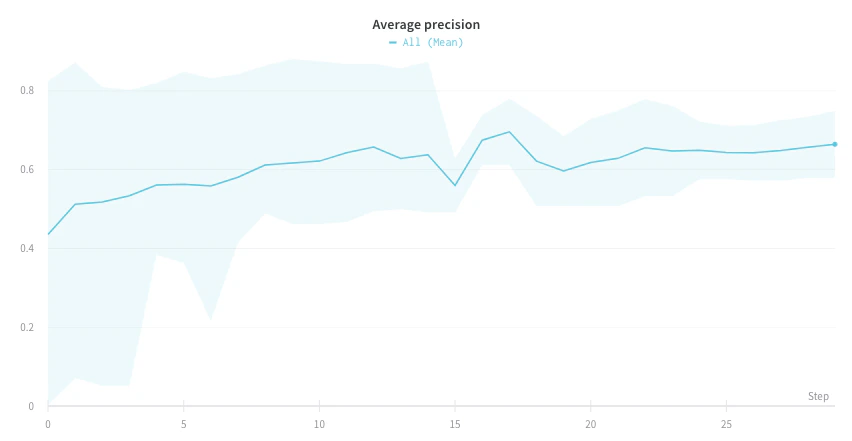

• Show changes in a metric via snapshots at multiple points during training
• Create a unique visualization not yet available in W&B (and hopefully share it with the world)
